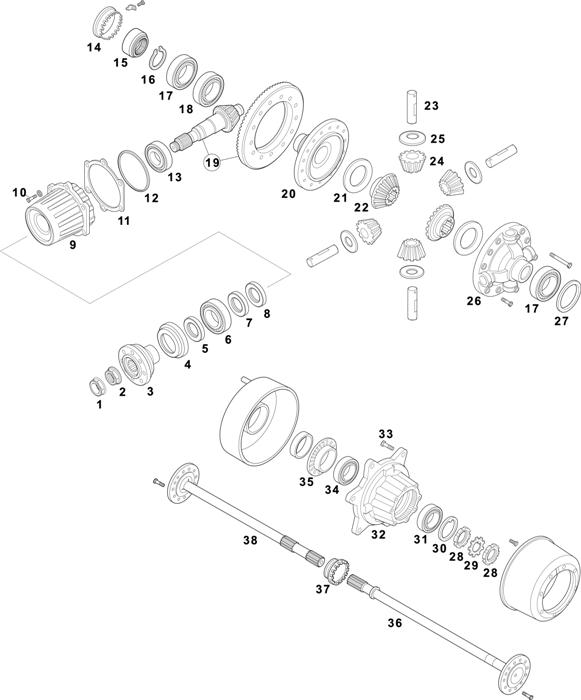

Fig.	Our No.	Part No.		Description	Notes	Q.ty	TP
1		81 90801 0264		BUSH		1
2		81 90640 0043		NUT		1
3		81 39115 6020		FLANGE D.122 MM		1
4		81 96502 0676		OIL SEAL 52X97X10/18		1
5		81 35613 0037		WASHER 38,6X64X5		1
6		81 93420 0165		BEARING 45X95X29		1
7		81 90760 0166		WASHER T.1,50 MM
7		81 90760 0168		WASHER T.1,60 MM
7		81 90760 0170		WASHER T.1,70 MM
7		81 90760 0172		WASHER T.1,80 MM
7		81 90760 0174		WASHER T.1,90 MM
8		81 91710 0310		SPACER		1
9		81 35601 0033		CASE		1
10		06 02813 4814		SCREW		6
11		81 90701 0896		GASKET T.0,15 MM
11		81 90701 0900		GASKET T.0,50 MM
11		81 90701 0903		GASKET T.0,80 MM
12		81 96502 0256		RETAINER RING		1
13		06 32499 0093		BEARING		1
14		81 35125 0020		GROOVED NUT		1
15		81 32425 0079		SLEEVE		1
16		81 91710 0309		ELASTIC RING		1
17		81 93420 0119		BEARING 63,5X112,7X30,1		2
18		06 32499 0048		BEARING 66,6X112,7X30,1		1
19	56170213	81 35199 6480		CROWN WHEEL/PINION 38:11		1
19	56170236	81 35199 6483		CROWN WHEEL/PINION 39:7		1
19	56170239	81 35199 6482		CROWN WHEEL/PINION 39:8		1
19	56170216	81 35199 6481		CROWN WHEEL/PINION 39:10		1
19	56170219	81 35199 6484		CROWN WHEEL/PINION 40:9		1
20		81 35205 0035		COVER		1
21	56170240	81 35613 0046		SHIM 58X100X0,5	(A)	2
21		81 35613 0036		SHIM 63,2X99X0,5	(B)	2
22	56170241	81 35106 0043		SIDE GEAR	(A)	2
22		81 35106 0044		SIDE GEAR	(B)	2

Fig.	Our No.	Part No.		Description	Notes	Q.ty	TP
23	56170212	81 35207 0014		PIN		4
24	56170242	81 35108 0070		IDLE PINION		4
25	56170243	81 32312 0629		THRUST WASHER		4
26		81 35110 0033		DIFF.CASE	(A)	1
26		81 35110 0034		DIFF.CASE	(B)	1
27		81 90712 0383		WASHER T.7,50 MM
28		06 12114 0123		GROOVED NUT M65X1,5		2
29		81 90801 0272		RING 65X76X1,5		1
30		81 90712 0142		WASHER		1
31		81 93420 0163		BEARING
32		81 35701 0143		HUB WHEEL		1
33		81 45501 0118		SCREW 18X1,5X34X78	OLD	6
33		81 45501 0156		SCREW 18X1,5X34X78	NEW	6
34		81 93420 0162		BEARING		1
35		81 96503 0161		OIL SEAL 87,26X120,7X15,4		1
36		81 35502 0076		DRIVE SHAFT		1
37		81 35202 0025		DIFF.LOCK SLEEVE		1
38		81 35502 0077		DRIVE SHAFT DIF.LOCK SIDE		1

Note

(AB) TO BE COUPLED TOGETHER
