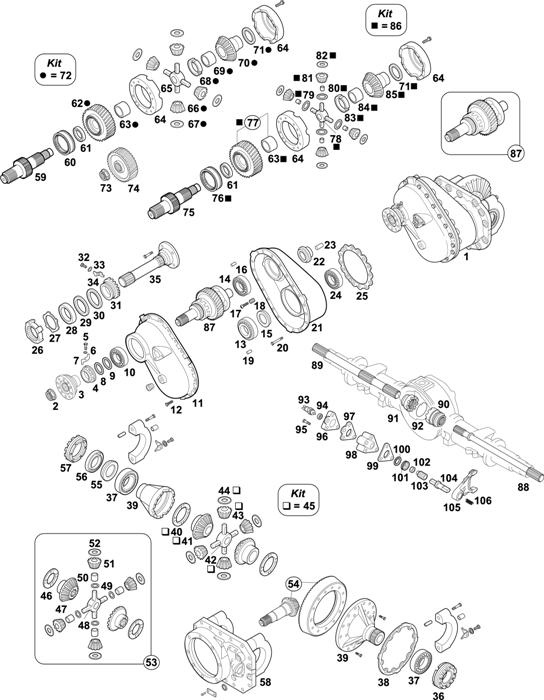

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
1		81 35600 6281	DIFF.ASSY R.27:18		1
1		81 35600 6278	DIFF.ASSY R.28:21		1
1		81 35600 6288	DIFF.ASSY R.29:15	(1)	1
1		81 35600 6285	DIFF.ASSY R.29:17	(1)	1
1		81 35600 6276	DIFF.ASSY R.29:24	(1)	1
2	60170101	81 90685 0311	NUT M45X1,5		1
3	60170885	81 39115 5026	OUTPUT FLANGE D.180	10 HOLES	1
4	60170917	81 35125 0005	GROOVED NUT		1
5		06 01283 5111	SCREW M8X16		1
6		06 16160 4105	WASHER		1
7		81 90801 0221	RETAINER		1
8		06 56289 0353	OIL SEAL 80X100X10		1
9		06 56289 0349	OIL SEAL 80X100X10		1
10		06 31420 4502	BEARING		1
11	60200461	81 35602 0010	COVER		1
12		06 01733 6313	SCREW M16X1,5X40		16
13		06 32499 0093	BEARING		1
14		06 31420 0602	BEARING		1
15		81 90711 0617	WASHER 55X65,5X4,70
16		06 22022 1214	PIN M6X28		2
17		06 02191 0515	SCREW M10X55		1
18		06 18700 4606	NUT M14X1,5X18		1
19		06 22022 1214	PIN M6X28		2
20		06 01734 4414	SCREW M14X1,5X45		11
21	60200460	81 35601 0010	PINION HOLDER CASE		1
22		81 35412 0009	PLUG		1
23		81 91001 0289	PIN		1
24	98170059	06 32499 0095	BEARING 65X140X51 MM		1
25	60171202	81 90701 0717	SHIM 0,10 MM
25		81 90701 0719	SHIM 0,20 MM
25	60171216	81 90701 0731	SHIM 0,50 MM
26	60200103	06 12114 0121	GROOVED NUT		1
27		06 16130 0121	LOCK RING		1
28		06 31420 0302	OIL SEAL 68X90X10		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
29		06 56279 0323	OIL SEAL 68X90X10		1
30		06 56279 0327	OIL SEAL 68X90X10		1
31	60170916	81 35125 0007	GROOVED NUT M102X1,5		1
32		06 01303 3111	SCREW M8X16		1
33		06 16160 4105	WASHER		1
34		81 90801 0221	RETAINER		1
35	60170925	81 35604 0007	DRIVE SHAFT W/FLAN.L=334		1
36	60170915	81 35125 0006	GROOVED NUT RH		1
37	98170048	06 32499 0108	BEARING 65X110X34,10 MM		2
38		81 90801 0210	RETAINER RING		1
39	60170602	81 35105 6030	DIFFERENTIAL CASE EMPTY		1
39	60170566	81 45100 6329	DIFFERENTIAL CASE COMPL.		1
40	60200092	81 35613 0034	THRUST WASHER	(A)STEEL	2
41	60170474	81 35106 0028	SIDE GEAR 16 T.-34 SPL.		2
42	60170719	81 35107 0020	DIFFERENTIAL SPIDER	(A)	1
43	60170476	81 35108 0049	DIFF. PINION 10 T.	(A)	4
44	60170477	81 90701 0727	THRUST WASHER	(A)	4
45	56170032	81 35107 6001	DIFFERENTIAL GEAR KIT	(A)	1
46	60200092	81 35613 0034	THRUST WASHER		2
47	60170474	81 35106 0028	SIDE GEAR 16 T.-34 SPL.	(B)	2
47	60170742	81 35106 0038	SIDE GEAR 16 T.-34 SPL.	(C)	2
48	60170473	81 35608 0016	DIFFERENTIAL SPIDER		1
49	60170479	81 90712 0550	SPACER	(C)	4
50	60170478	81 93020 0846	BUSH		4
51	60170476	81 35108 0049	DIFF. PINION 10 T.	(B)	4
51	60170904	81 35108 0061	DIFF. PINION 10 T.	(C)	4
52	60170477	81 90701 0727	THRUST WASHER		4
53	60170472	. 393 586 0035	DIFFERENTIAL REPAIR KIT	(B)	1
53	60170843	. 393 350 0040	DIFFERENTIAL REPAIR KIT	(C)	1
54	60170585	81 35199 6316	CROWN WHEEL/PINION 27:18		1
54	60170584	81 35199 6317	CROWN WHEEL/PINION 28:21		1
54	60170844	81 35199 6314	CROWN WHEEL/PINION 29:15		1
54	60170706	81 35199 6315	CROWN WHEEL/PINION 29:17		1
54	60170682	81 35199 6318	CROWN WHEEL/PINION 29:24		1
55		06 56669 0042	OIL SEAL 47,7X57,5X7		1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
56		81 35730 0014	SEAL BAFFLE		1
57	60170880	81 35125 0004	GROOVED NUT LH		1
58	60200317	81 35301 6063	DIFF.CASE FOR CWP		1	NSS
58	60200422	81 35301 6064	DIFF.CASE FOR CWP W/PLUG		1
59	60170570	81 35611 0007	INTERMEDIATE SHAFT		1
60	60170571	81 35612 0012	SLIDING SLEEVE		1
61	60200182	81 35204 0020	THRUST WASHER T.3,65 MM
61	60200181	81 35204 0019	THRUST WASHER T.3,85 MM
61	60200180	81 35204 0018	THRUST WASHER T.4,00 MM		1
62	60170574	81 35610 0017	GEAR 28 T.		1
63	60170575	81 93020 0678	BUSH 60X64X50		1
64	60170582	81 35100 6592	DIFFERENTIAL CASE EMPTY		1
65	60170576	81 35608 6001	DIFFERENTIAL SPIDER		1
66	60170156	81 35108 0048	DIFF.PINION 10 T.		4
67	60170577	81 90701 0722	THRUST WASHER		4
68	60170578	81 90620 0049	GROOVED NUT		1
69	60170579	81 93020 0679	BUSH 44X49X35		1
70	60170580	81 35618 0003	SIDE GEAR 16 T.-22 SPL.		1
71	60200179	81 35204 0034	THRUST WASHER T.2,35 MM		1
71	60200177	81 35204 0036	THRUST WASHER T.2,60 MM		1
72	56170037	81 35107 6003	DIFFERENTIAL REPAIR KIT		1
73	60170101	81 90685 0311	NUT M45X1,5		1
74	60170583	81 35610 0013	GEAR 28 T.		1
75	60200246	81 35611 0017	INTERMEDIATE SHAFT		1
76	60170762	81 35612 0014	SLIDING CLUTCH GEAR	(D)	1
76	60170929	81 35612 0013	SLIDING SLEEVE	(E)	1
77	60200260	81 35610 0030	GEAR & BUSH ASSY 28 T.		1
78	60200243	81 35608 0024	DIFFERENTIAL SPIDER		1
79	60200248	81 91710 0442	SPACER		4
80	60200247	81 93021 0218	BUSH		4
81	60200242	81 35609 0008	DIFF. PINION 10 T.		4
82	60170577	81 90701 0722	THRUST WASHER		4
83	60200241	81 90620 0088	GROOVED NUT M 48X1,5		1
84	60170579	81 93020 0679	BUSH 44X49X35		1
85	60170580	81 35618 0003	SIDE GEAR 16 T.-22 SPL.	(D)	1

Fig.	Our No.	Part No.	Description	Notes	Q.ty	TP
85	60200244	. 355 353 1115	SIDE GEAR 16 T.-22 SPL.	(E)	1
86	56170207	81 35107 6021	DIFFERENTIAL GEAR KIT	(D)	1
87	60200259	81 35100 6266	DIFF. SHAFT KIT 28 T.	(E)	1
88	60170964	81 35502 0029	DRIVE SHAFT L=1090,00 MM	(2)	1
88		81 35502 0098	DRIVE SHAFT	(3)	1
89	60170965	81 35502 0030	DRIVE SHAFT D.LOCK L=1090		1
89		81 35502 0099	DRIVE SHAFT D.LOCK		1
90		81 35202 0018	DIFF.LOCK SLEEVE	OLD	1
90		81 35202 0035	DIFF.LOCK SLEEVE	NEW	1
91		81 35202 0019	DIFF.LOCK SLEEVE	OLD	1
91		81 35202 0036	DIFF.LOCK SLEEVE	NEW	1
92	60200035	81 90820 0073	LOCK PLATE		1
93		81 25505 0636	SPEEDOMETER GEAR		1
94		06 56190 0712	SEAL RING 18X22		1
95		06 01283 5121	SCREW M8X50		3
95		06 01013 7119	SCREW M8X70		3
96		81 35636 0003	COVER		1
97		81 96601 0146	GASKET		1
98		81 35631 0002	CYLINDER		1
98		81 35631 0006	CYLINDER		1
99		81 96601 0627	GASKET 48X0,5-3X9		1
100		06 56331 3274	SEAL RING		1
101	56170224	81 35634 0011	PISTON		1
102		06 11271 6211	NUT		1
103		06 06073 1414	LOCK PIN M10X25		1
104	60200425	81 35619 0003	PIN		1
105	60170922	81 35614 0005	DIFFERENTIAL FORK		1
106		81 97601 0689	SPRING 3,6X27X58		1

(ABCDE) TO BE COUPLED TOGETHER
(1) SUPPLY WITH 81 90685 0311 60170101 (FIG.2)
(2) REPLACED BY 81 35502 0030 WITH D.LOCK
(3) REPLACED BY 81 35502 0099 WITH D.LOCK
